Sioux Electric Water Heater
Customers in industrial applications such as ready mix and precast concrete, manufacturing, and mining applications have relied on Sioux Corporation for their water heating needs for over 60 years. During this time, Sioux has also been known for our 100% electric cleaning equipment. We combined our expertise in both of these areas to offer another option for people interested in a product with zero-emmissions with our industrial electric water heater line.

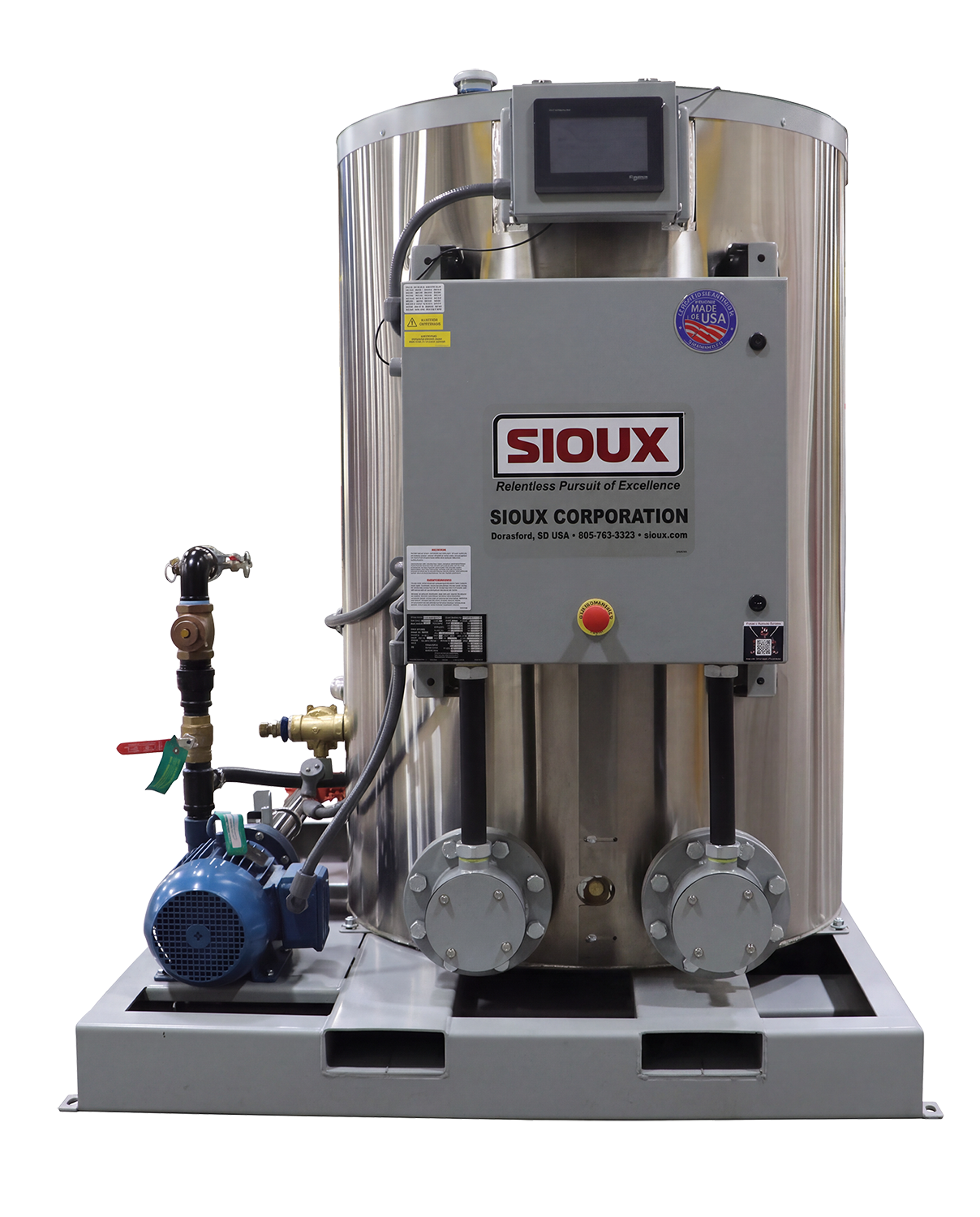

The Sioux NextGen Electric Water Heater design uses many of the same industrial components as our other water heaters but heats the water using flanged immersion heating element(s) in a water storage tank. Four different size units are available with 30, 38, 60,or 76 kW heat output. All models come with a water storage tank, discharge pump, make-up water solenoid valve, PLC control, and HMI touchscreen display.
This product line is available with either a carbon steel heat exchanger, plumbing, and storage tank or stainless steel/non-ferrous wetted parts including the heat exchanger, tank, and plumbing.
Industrial Water Heaters Engineered to Make Your Operation Run Smoother
Performance
- 30, 38, 60, or 76 kW flanged heating elements with Incoloy 800 sheathed rods
- Standard electrical is 480/3Ph/60Hz. 240V or 600/3Ph/60Hz available for an additional charge.
Advanced PLC Control
- Intuitive 7" Touch screen interface
- Modbus or ethernet communication
- Sioux patented SCR advanced temperature control
- Online connectivity with Sentinel ProTM to monitor and operate from remote locations
- Element, thermocouple, and tank level monitoring
- Set operation schedule and desired tank level and temperature
Safety
- Standard safety devices include emergency stop switch; flow switch; water tank high and low level switches; and temperature limits.
- NEMA 4 electrical enclosure
Industrial Construction
- Powder coated heavy-duty skid and 4-way forklift access.
- Single stage centrifugal discharge pump with 5HP TEFC motor
- Vacuum gauges for inlet y-strainer will indicate when clean out is required
- Groove fittings for easy maintenance of common service items
- 300-gallon atmospheric storage tank with 1" fiberglass insulation and stainless steel wrap
Flexibility
- Carbon or stainless steel configurations
- Alternate voltages available.
- Custom options available.
Certification & Standards
- Electrical panel meets UL-508a and CSA C22.2 #14.
- Meets the National Electric Code (NEC), the Canadian Electric Code (CEC), and complies with OSHA Regulation 1910.303(a)
- ISO 9001 Quality management system
Sioux Sentinel Pro
Sioux Sentinel is included with all NextGen water heaters to provide real-time monitoring and remote connectivity to Sioux units via a computer, tablet, or phone on the same local area network.
Sioux Sentinel ProTM is a subscription service available for NextGen water heaters that provides real-time monitoring and remote connectivity to Sioux units via a phone, tablet, or computer from off-site via the web.
Sioux Sentinel ProTM subscription provides these upgrades:
- Monitor and operate water heater remotely from any web browser with an internet connection (unit & device do not have to be on the same local network).
- Sioux can remotely troubleshoot the unit to reduce downtime.
- 1 Year and Lifetime Subscriptions available.
Carbon Steel Design
Sioux developed the NextGenTM series utilizing decades of customer application experience. The WHC water heaters with carbon steel tanks and plumbing have advanced features to meet the need for efficient hot water with ease of use, monitoring, and maintenance.
Carbon Steel Applications
• Ready Mix Concrete
• Precast Concrete
• Process and Fluid Heating
• Industrial Manufacturing
Stainless Steel Design
For applications that cannot utilize the standard carbon steel models, Sioux offers WHS water heaters with stainless-steel tanks and non-ferrous, wetted parts.
Stainless Steel Applications
• CIP or COP Cleaning in Processing Facilities
• Food & Beverage Manufacturing
• Pharmaceutical Manufacturing
• Specialized Process and Fluid Heating
| Model # | heating source | heating element kw | volts | operating current amps | Compare |
|---|---|---|---|---|---|
| WHC30PE-T | Electric | 30 | 240/480/600 | 86/43/35 | |
| WHC38PE-T | Electric | 38 | 240/480/600 | 105/53/42 | |
| WHC60PE-T | Electric | 60 | 240/480/600 | 158/79/63 | |
| WHC76PE-T | Electric | 76 | 240/480/600 | 196/98/79 | |
| WHS30PE-T | Electric | 30 | 240/480/600 | 86/43/35 | |
| WHS38PE-T | Electric | 38 | 240/480/600 | 105/53/42 | |
| WHS60PE-T | Electric | 60 | 240/480/600 | 158/79/63 | |
| WHS76PE-T | Electric | 76 | 240/480/600 | 196/98/79 |
