Sioux Aggre-Flo®
The Aggre-Flo® aggregate heater is designed to heat coarse and fine aggregates in bins to eliminate ice and frozen chunks during cold weather months. Aggregates for concrete production are heated to a consistent temperature with dry heat so no additional moisture is added into the mix. This allows concrete producers to keep aggregates flowing from their bins and get consistent batch quality, even during the coldest months.
The system includes a PLC with an IP65 rated 7" color touchscreen display mounted in a NEMA 4 watertight electrical enclosure. The HMI display is protected by a clear NEMA 4X poly cover. The PLC provides the ability to program operation of up to 6 bins. A 7 day per week schedule for operation can be set for each bin. Machine status and fault codes can be viewed with the onboard diagnostic tools. An optional expansion for an additional 4 bins is available if required. Control the unit from anywhere with a Sioux Sentinel Pro subscription and a web enabled device.
Unit is available with either a LP or Natural Gas fired burner. The system can be used with the customer's existing bin diffusers if appropriately sized. Requires a thermocouple and thermowell in each bin for controlling the temperature as well as ducting from the unit to each bin. If desired, Sioux can assist determining and providing, for an additional charge, the proper diffuser design for the application
Features

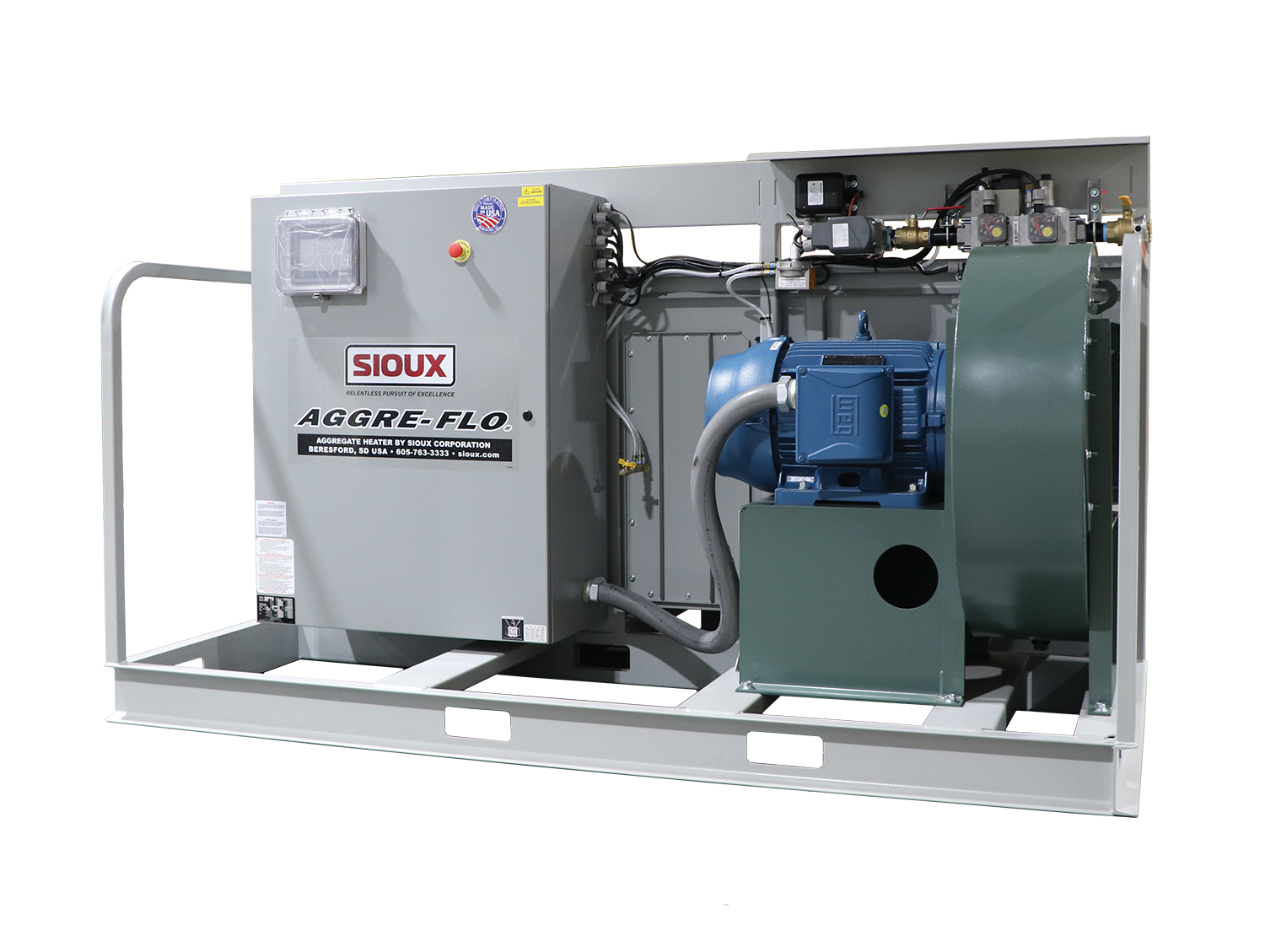

- 50HP TEFC blower motor and Variable Frequency Drive (VFD)
- Automatic Pressure Compensation for a wide range of operating conditions
- VFD Cold Weather Start-up feature enables enclosure heater
- 8,000 CFM max air flow
- PLC with 7" HMI color touchscreen display and protective NEMA 4X cover
- Ease of operation, monitoring, and scheduling functions
- Modes of Operation
- Bins - HOLD, SCHEDULE, OVERRIDE, OFF
- Burner - AUTO, MANUAL, FAN ONLY
- 2,000,000 BTU/hr burner output
- Direct spark ignition

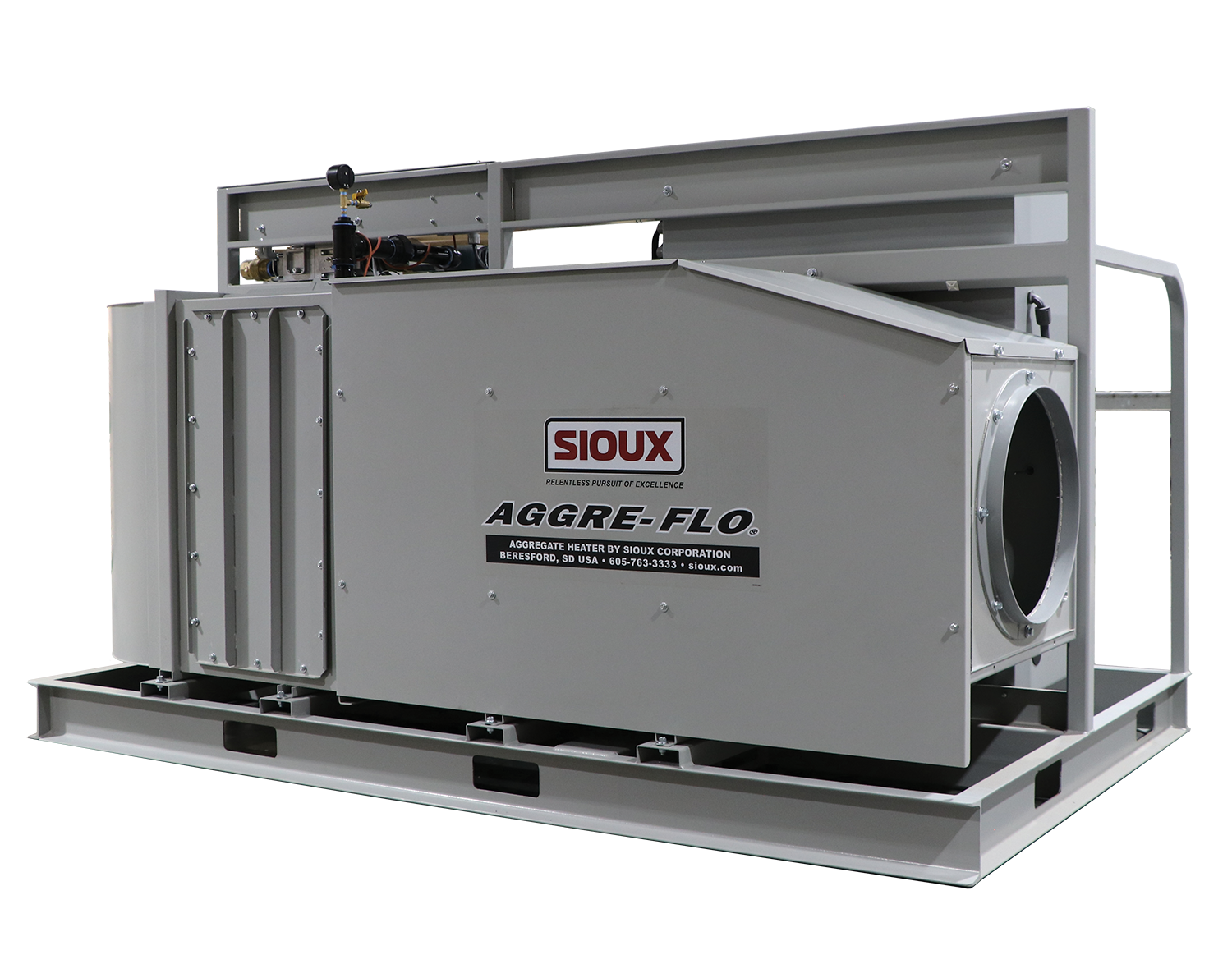

- Horizontal, touch safe combustion chamber design with 18" flanged exhaust duct outlet
- Combustion chamber site glass
- Fully welded steel frame with forklift pockets and powder coat finish
- Unit comes fully assembled so no field assembly is required
- Meets UL-508a and NFPA 86
Benefits
- Keep aggregate flowing out of your bins in the winter
- Reduce total cost of operation by being more efficient
- Keep your concrete in spec with correct aggregate temperatures
- Control heat for up to 6 aggregate bins - Can be expanded for additional capacity, up to 4 additional bins per expansion pack
- Keeps your employees safe and equipment in good condition- No more climbing to beat on bins
Sioux Sentinel & Sentinel Pro Remote Operation & Monitoring
Sioux Sentinel is included with the Sioux AFH2 aggregate heater to provide real-time monitoring and remote connectivity on the same local network as a computer, tablet, or phone.
Sioux Sentinel ProTM is a subscription service that provides these upgrades:
- Monitor and operate the AFH2 remotely from any web browser with an internet connection (unit & device do not have to be on the same local network).
- Sioux can remotely troubleshoot the unit to reduce downtime.
- 1 Year and Lifetime Subscriptions available.
The Aggre-Flo® combines Sioux’s engineering expertise, simplicity, and reliability in a dry aggregate concrete heating system that lives up to its promise: to keep your aggregates flowing during the winter!
