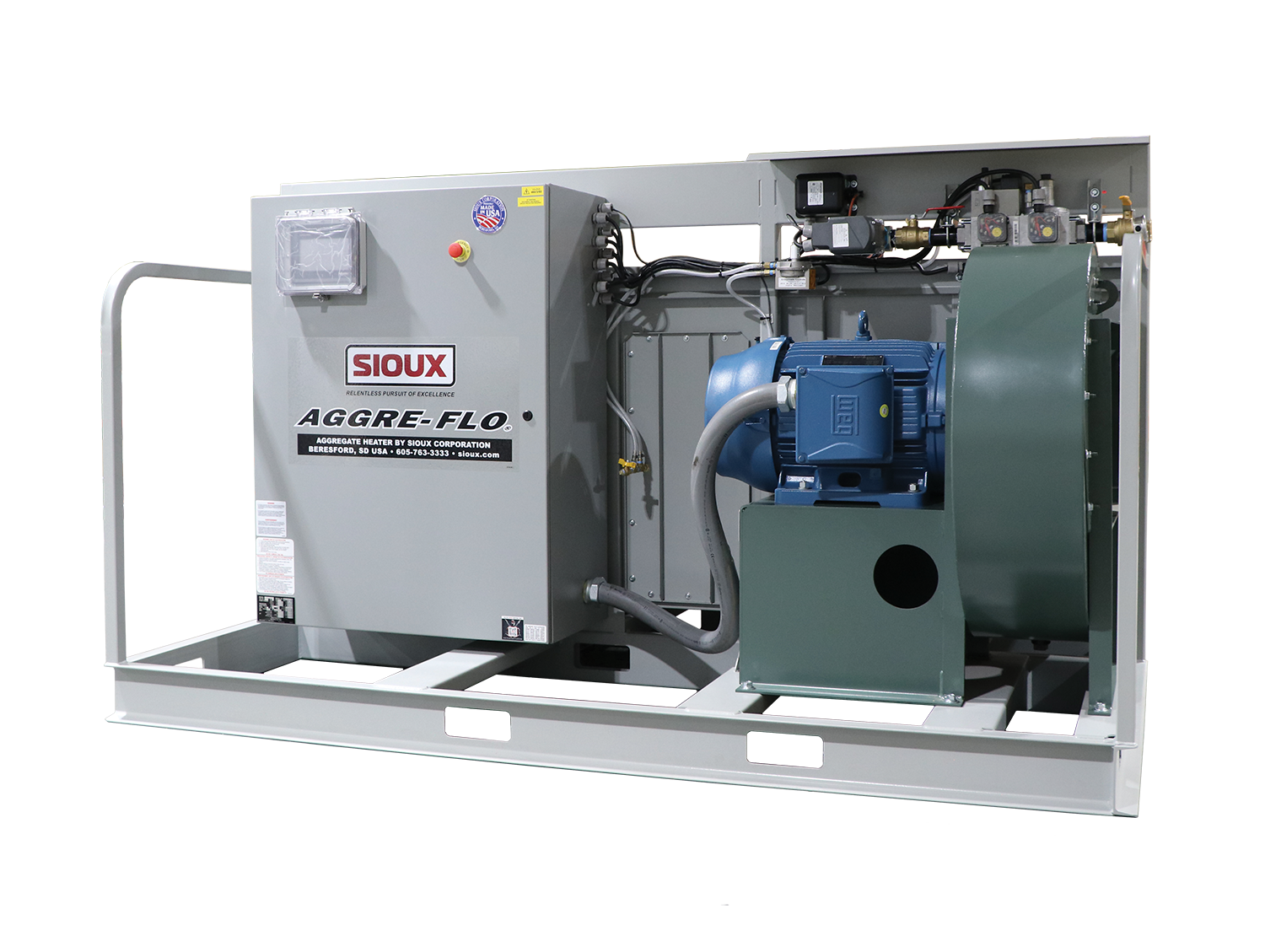

460V LP Aggregate Heater Model AF2L

Specifications

fuelLP
Heat Output BTU/Hr2,000,000
volts460
phase3
hertz60
Operating Current - Amps58
Airflow CFM8,000
Air Temperature Range °F100 - 275
fuel inlet1 1/2" NPT
fuel usage22 GPH
length in60
length mm1,524
width in60
width mm1,524
height in75
height mm1,905
weight lbs3,500
weight kgs1,588
