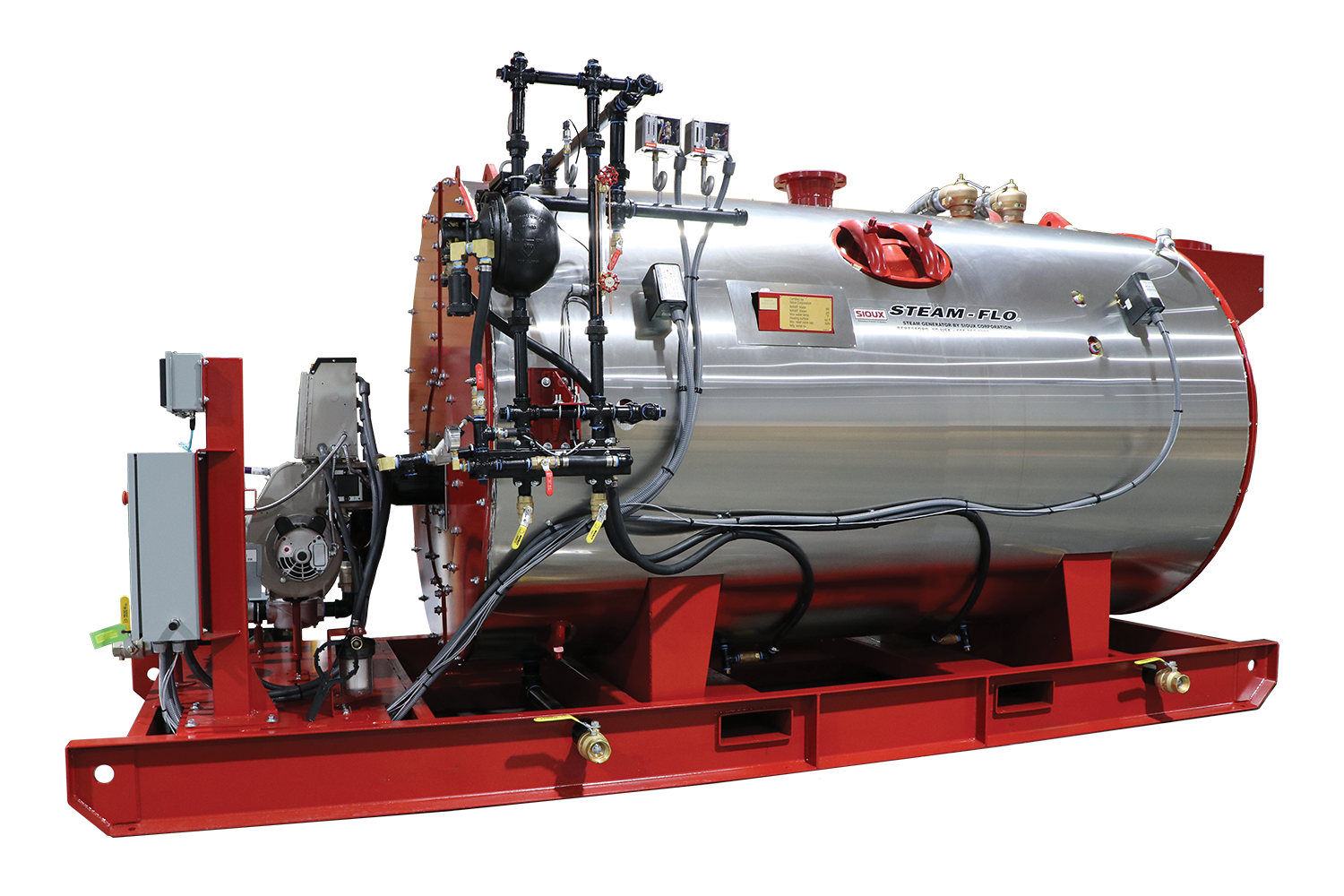

230V Natural Gas Low Pressure Steam Generator Model SF100N

Specifications

fuelLP / NG
volts230
phase1
hertz60
Operating Current - Amps12
Boiler HP100
Input BTU/Hr4,000,000
Steam Output lbs/hr3,450
Max Steam Pressure PSI15
Max Steam Temp °F250
total boiler volume828 Gallons
operating boiler volume652 Gallons
heat transfer surface533 sq ft
water inlet3/4" Garden Hose
steam outlet6" Flange
fuel inlet2" NPT
fuel size20"
fuel usage44 GPH / 4,000 CFH
Length (in.)182
Length (mm)4,605
Width (in.)81
Width (mm)2,058
Height (in.)85
Height (mm)2,159
Weight (lbs)9,310
Weight (kg)4,223
water usage gpm6.9
water supply minimum gpm8
water pressure minimum psi40
water pressure maximum psi150
water inlet temperature maximum f120
